"George's Ridge"

Named after Dr. George Sedberry (who provided the sonar data), this
shelf-edge hardground area is an area of Essential Fish Habitat.

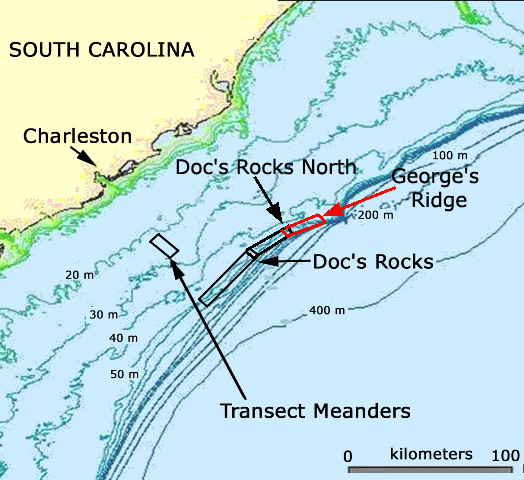

The area surveyed is northeast of Doc's Rocks and Doc's Rocks North.

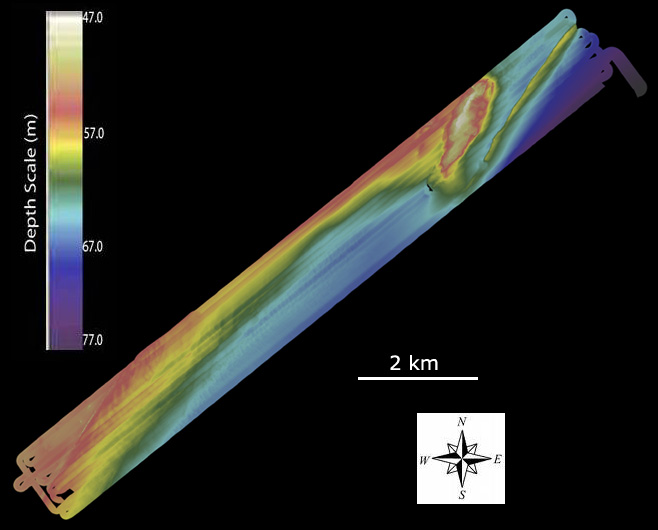

The area consist of rocky ledges and low-relief ridges in water depths of 47 to 57 meters.

Scroll down to view images and the site's location.

...




Top

Top



Top

Top

Close-up of the northeast ridge of Doc's Rocks North.
This narrow, very linear feature has about 2 m of relief.

scale ..
Top





The southwest portion of Doc's Rocks North shows similar rocky features to
the main portion of Doc's Rocks (just to the southwest of the figure).

scale ..
